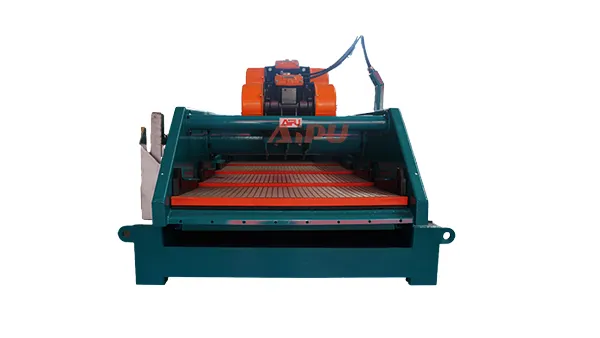

Hunter-MGD Series - Switchable elliptical and linear motion for optimal solids control performance
Advanced dual motion technology for superior solids control performance
The Hunter-MGD Series Dual Motion Shale Shakers are designed to provide flexible solids separation solutions for drilling fluid systems. These shakers feature switchable elliptical and linear motion, allowing operators to optimize performance based on specific drilling conditions.
With its advanced design, the Hunter-MGD can handle a wide range of drilling fluids and solids types, providing excellent solids removal efficiency while maximizing fluid recovery. The dual motion capability makes it suitable for both conventional and unconventional drilling applications.
Versatile solution with switchable motion modes

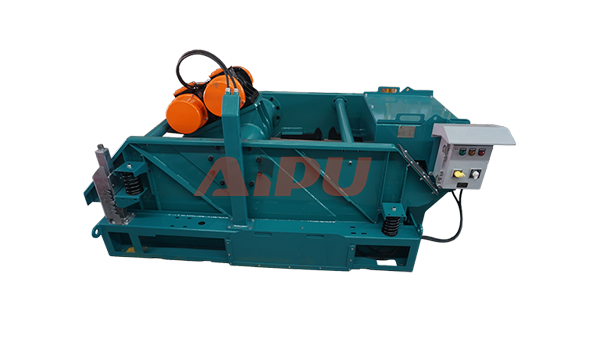

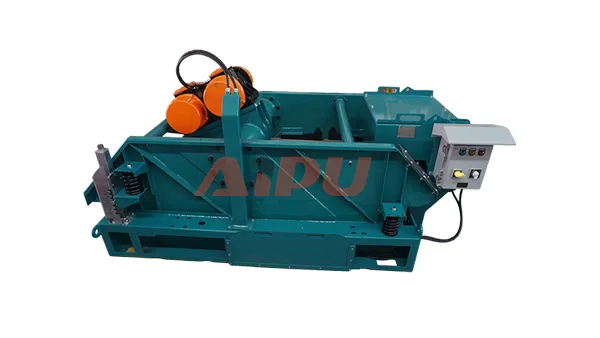

The Hunter-MGD is a versatile dual motion shale shaker that can switch between elliptical and linear motion to adapt to changing drilling conditions. This flexibility makes it ideal for a wide range of drilling operations, from conventional oil & gas to HDD and trenchless applications.
Featuring a robust construction and advanced vibration technology, the MGD delivers consistent performance in the most demanding environments. Its quick-change screen system and adjustable deck angle ensure easy maintenance and optimal separation efficiency.
| Parameter | Value |
|---|---|
| Vibration Track | Switchable Elliptical / Linear |
| Capacity | 180 m³/h |
| Screen Area | 2.72 m² |
| Screen Number | 4 |
| Motor Power | 2 × 1.86 kW |
| Deck Angle | -1° ~ +5° |
| Double Amplitude | 5-6mm |
| Noise | 85db |
| Weight | 1520kg |
| G-force | 6.0-7.0G |
| Electrical system | 380V/50HZ:460V/60HZ |
Innovative design for maximum performance and reliability
Easy switching between elliptical and linear motion to adapt to changing drilling conditions.
Adjustable G-force up to 7.5g for efficient solids separation and fluid recovery.
-1° to +5° deck angle adjustment for optimal performance in varying conditions.
Heavy-duty steel frame with anti-corrosion coating for long service life.
Explosion-proof motors designed for harsh outdoor environments.
All-round anti-splash system significantly reduces mud splash.
Contact us today to learn more about the Hunter-MGD Series Dual Motion Shale Shakers and how they can improve your drilling operations.
