Hunter-MG Series - High-performance primary solids control equipment for drilling fluid management
Advanced linear motion technology for superior solids control performance
The Hunter-MG Series Linear Motion Shale Shakers are designed for primary solids separation in drilling fluid systems. These shakers feature a high-G force design that ensures effective removal of drilled solids while maximizing fluid recovery.
Available in four models (Hunter-MG3, MG4, MG5, and Mini), our linear motion shakers can handle a wide range of drilling conditions and flow rates, from 50 to 180 m³/h. Each model is engineered for durability, ease of maintenance, and optimal performance in harsh drilling environments.
Four models to meet your specific drilling requirements

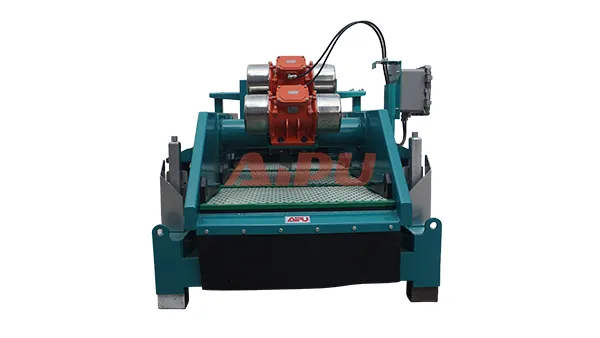

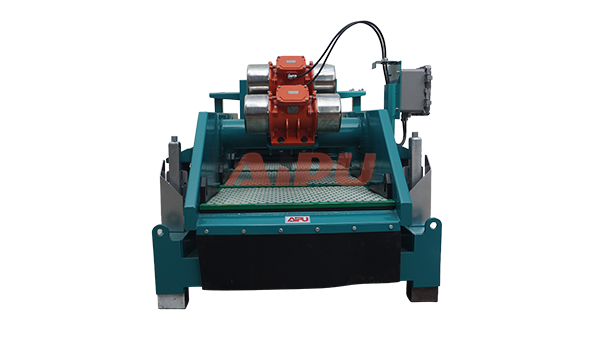

The Hunter-MG3 is a compact linear motion shale shaker designed for medium-capacity drilling operations. With its efficient design and reliable performance, it's ideal for onshore drilling rigs and HDD applications.
Featuring a 3-panel screen design, the MG3 provides excellent solids separation while maintaining a compact footprint, making it suitable for limited space environments.
| Parameter | Value |
|---|---|
| Vibration Track | Linear |
| Capacity | 120 m³/h |
| Screen Area | 2.00 m² |
| Screen Number | 3 |
| Motor Power | 2 × 1.5 kW |
| Deck Angle | -1° ~ +5° |

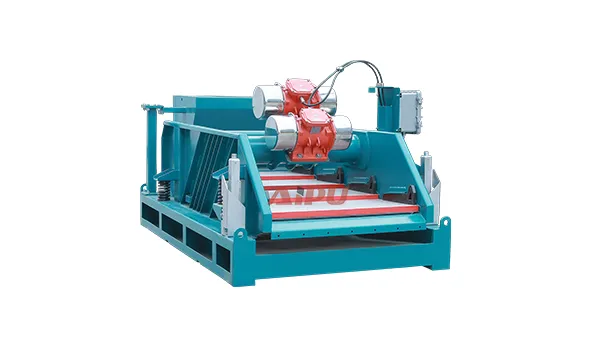

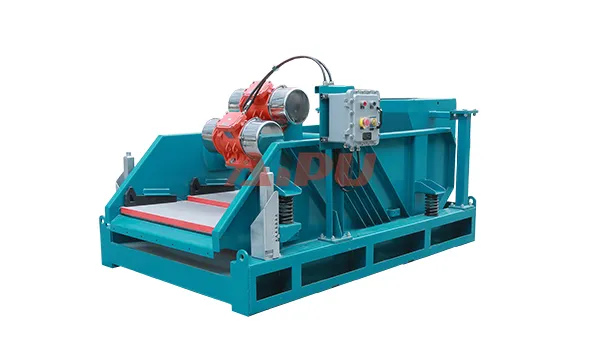

The Hunter-MG4 is the most versatile model in the Hunter-MG Series, suitable for a wide range of drilling operations. With its 4-panel screen design and high processing capacity, it's ideal for both onshore and offshore drilling rigs.
Featuring advanced linear motion technology and adjustable G-force, the MG4 delivers superior solids separation performance while minimizing fluid loss. Its robust construction ensures reliable operation in the most demanding drilling conditions.
| Parameter | Value |
|---|---|
| Vibration Track | Linear |
| Capacity | 140 m³/h |
| Screen Area | 2.70 m² |
| Screen Number | 4 |
| Motor Power | 2 × 1.72 kW |
| Deck Angle | -1° ~ +5° |

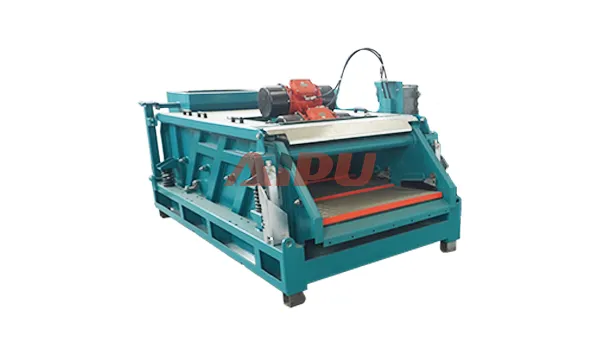

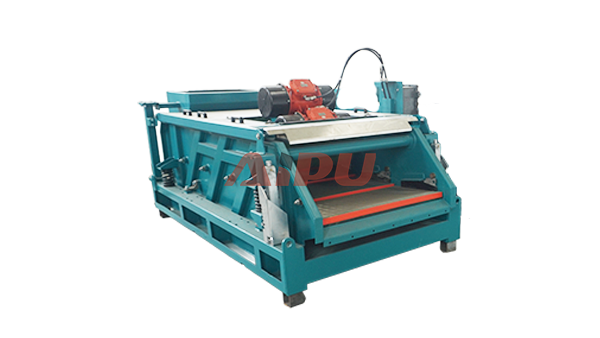

The Hunter-MG5 is a high-capacity linear motion shale shaker designed for large-scale drilling operations. With its 5-panel screen design and maximum processing capacity of 180 m³/h, it's ideal for deepwater drilling rigs and high-volume land drilling applications.
The MG5 features a heavy-duty construction, advanced vibration technology, and a large screen area, making it capable of handling the most demanding drilling conditions while maintaining optimal performance and reliability.
| Parameter | Value |
|---|---|
| Vibration Track | Linear |
| Capacity | 180 m³/h |
| Screen Area | 3.80 m² |
| Screen Number | 5 |
| Motor Power | 2 × 1.94 kW |
| Deck Angle | -1° ~ +5° |

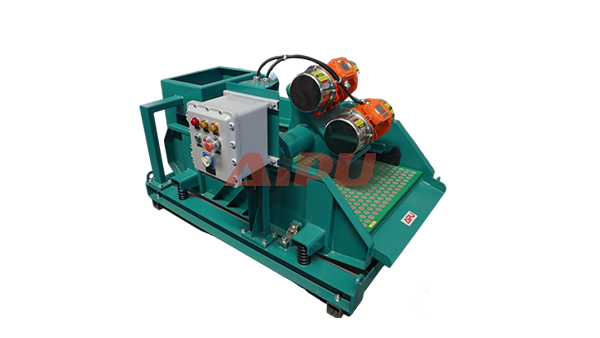

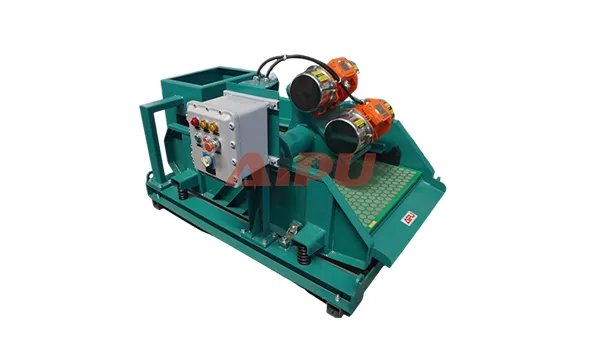

The Hunter-Mini is a compact, portable linear motion shale shaker designed for small-scale drilling operations, HDD projects, and limited space environments. With its 2-panel screen design and 50 m³/h capacity, it's ideal for utility drilling, environmental drilling, and small oilfield applications.
Despite its compact size, the Hunter-Mini delivers the same high performance and reliability as larger models, featuring a robust construction, adjustable G-force, and quick-change screen system.
| Parameter | Value |
|---|---|
| Vibration Track | Linear |
| Capacity | 50 m³/h |
| Screen Area | 1.35 m² |
| Screen Number | 2 |
| Motor Power | 2 × 0.75 kW |
| Deck Angle | 0° |
Innovative design for maximum performance and reliability
Adjustable G-force up to 7.5g for efficient solids separation and fluid recovery.
-1° to +5° deck angle adjustment for optimal performance in varying conditions.
Can quickly and easily replace the screen.
Heavy-duty steel frame with anti-corrosion coating for long service life.
Explosion-proof motors designed for harsh outdoor environments.
All-round anti-splash system significantly reduces mud splash.
Contact us today to learn more about the Hunter-MG Series Linear Motion Shale Shakers and how they can improve your drilling operations.
