Hunter-MG4D & MG4T Series - Multi-unit systems for ultra-high volume processing in large-scale drilling operations
Advanced tandem technology for ultra-high volume solids control performance
The Hunter-MG4D & MG4T Series Tandem Shale Shakers are designed for ultra-high volume processing in large-scale drilling operations. These multi-unit systems combine two or more linear motion shakers into a single integrated system, providing exceptional solids separation efficiency while handling extremely high flow rates.
Available in two models (Hunter-MG4D and MG4T), our tandem shakers can handle flow rates from 280 to 420 m³/h, making them ideal for the most demanding drilling applications. Each model is engineered for durability, ease of maintenance, and optimal performance in harsh drilling environments.
Two models for ultra-high volume processing

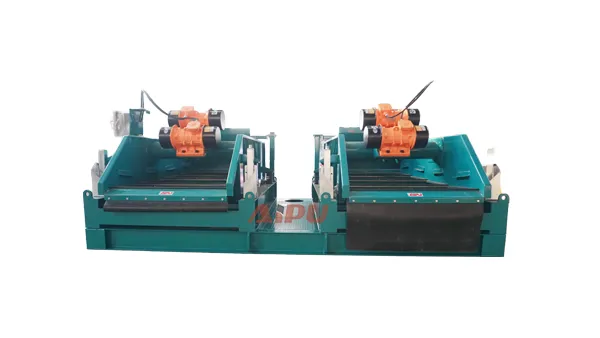

The Hunter-MG4D Tandem Shale Shaker features two integrated linear motion shaker units in a single frame, providing a combined processing capacity of up to 280 m³/h. This dual-unit design allows for simultaneous processing of large volumes of drilling fluid, ensuring efficient solids removal even in the most demanding drilling conditions.
Featuring advanced linear motion technology, adjustable G-force, and quick-replace screens, the MG4D delivers superior solids separation performance while minimizing fluid loss. Its robust construction ensures reliable operation in harsh environments, making it ideal for large-scale onshore and offshore drilling operations.
| Parameter | Value |
|---|---|
| Vibration Track | Linear |
| Capacity | 280 m³/h |
| Screen Area | 5.4 m² |
| Screen Number | 8 |
| Motor Power | 2 × 2 × 1.72 kW |
| Deck Angle | -1° ~ +5° |

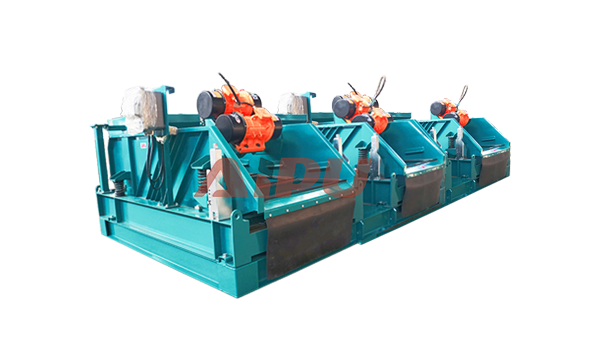

The Hunter-MG4T Tandem Shale Shaker features three integrated linear motion shaker units in a single frame, providing an exceptional combined processing capacity of up to 420 m³/h. This triple-unit design is specifically engineered for the most demanding drilling operations, where extremely high flow rates require maximum solids separation efficiency.
Featuring the same advanced technology as the MG4D model, the MG4T delivers superior performance with enhanced processing capability. Its modular design allows for flexible configuration, while its user-friendly features ensure easy maintenance and operation. The MG4T is the ideal solution for ultra-large drilling rigs and challenging drilling environments.
| Parameter | Value |
|---|---|
| Vibration Track | Linear |
| Capacity | 420 m³/h |
| Screen Area | 8.1 m² |
| Screen Number | 12 |
| Motor Power | 3 × 2 x 1.72 kW |
| Deck Angle | -1° ~ +5° |
Innovative design for maximum performance and reliability
Two or three integrated shaker units for ultra-high volume processing capacity.
Adjustable G-force up to 7.5g for efficient solids separation and fluid recovery.
-1° to +5° deck angle adjustment for optimal performance in varying conditions.
Can quickly and easily replace the screen
Heavy-duty steel frame with anti-corrosion coating for long service life.
All-round anti-splash system significantly reduces mud splash.
Contact us today to learn more about the Hunter-MG4D & MG4T Series Tandem Shale Shakers and how they can improve your drilling operations.
