Hunter-MG Series - Integrated vacuum technology for enhanced solids control performance
Advanced vacuum technology for superior solids control performance
The Hunter-MG Vacuum Series Shale Shakers combine linear motion technology with integrated vacuum systems to provide enhanced solids separation and degassing capabilities. These shakers are designed to handle drilling fluids with high gas content, effectively removing both solids and gas while maximizing fluid recovery.
Available in two models (Hunter-MG4V and MG5V), our vacuum shakers are ideal for drilling operations with high gas invasion, such as shale gas and tight oil drilling. The negative pressure system applies vacuum loading to specific screens, increasing the drying area and reducing the moisture content of cuttings.
All Hunter-MG Vacuum Series shakers are manufactured with high-quality materials, rigorous quality control, and comply with international standards including API, ISO, ATEX, and HSE requirements.
Two models with integrated vacuum technology

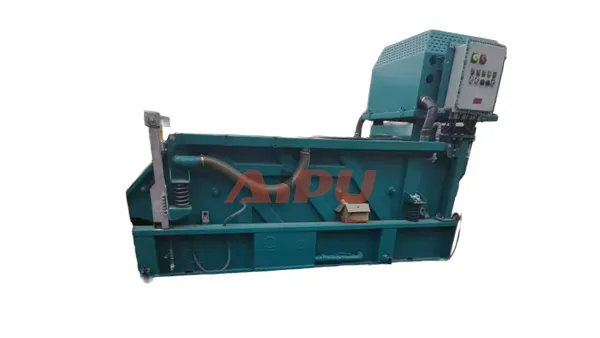

The Hunter-MG4V is a vacuum shale shaker that integrates linear motion technology with a negative pressure system. This combination provides enhanced solids separation and degassing capabilities, making it ideal for drilling operations with high gas content.
With its 4-panel screen design and vacuum loading system, the MG4V increases the drying area and reduces the moisture content of cuttings, resulting in lower mud loss and reduced drilling costs. The compact design makes it suitable for both onshore and offshore applications.
| Parameter | Value |
|---|---|
| Vibration Track | Linear |
| Capacity | 120 m³/h |
| Screen Area | 2.70 m² |
| Screen Number | 4 |
| Motor Power | 2 × 1.72 kW |
| Deck Angle | -1° ~ +5° |
The Hunter-MG5V is a high-capacity vacuum shale shaker designed for large-scale drilling operations with high gas invasion. Featuring a 5-panel screen design and powerful vacuum system, this shaker provides exceptional solids separation and degassing performance.
The MG5V's integrated negative pressure system applies vacuum loading to the screens, increasing the drying area and effectively reducing the moisture content of cuttings. This results in improved fluid recovery and reduced environmental impact. The robust construction ensures reliable operation in the most demanding drilling conditions.
| Parameter | Value |
|---|---|
| Vibration Track | Linear |
| Capacity | 120 m³/h |
| Screen Area | 2.80 m² |
| Screen Number | 5 |
| Motor Power | 2 × 1.94 kW |
| Deck Angle | -1° ~ +5° |
Innovative design for maximum performance and reliability
Negative pressure vacuum technology increases drying area and reduces cuttings moisture content.
Adjustable G-force up to 7.5g for efficient solids separation and fluid recovery.
-1° to +4° deck angle adjustment for optimal performance in varying conditions.
Can quickly and easily replace the screen.
Heavy-duty steel frame with anti-corrosion coating for long service life.
All-round anti-splash system significantly reduces mud splash.
Contact us today to learn more about the Hunter-MG Series Vacuum Shale Shakers and how they can improve your drilling operations.
