Introduction

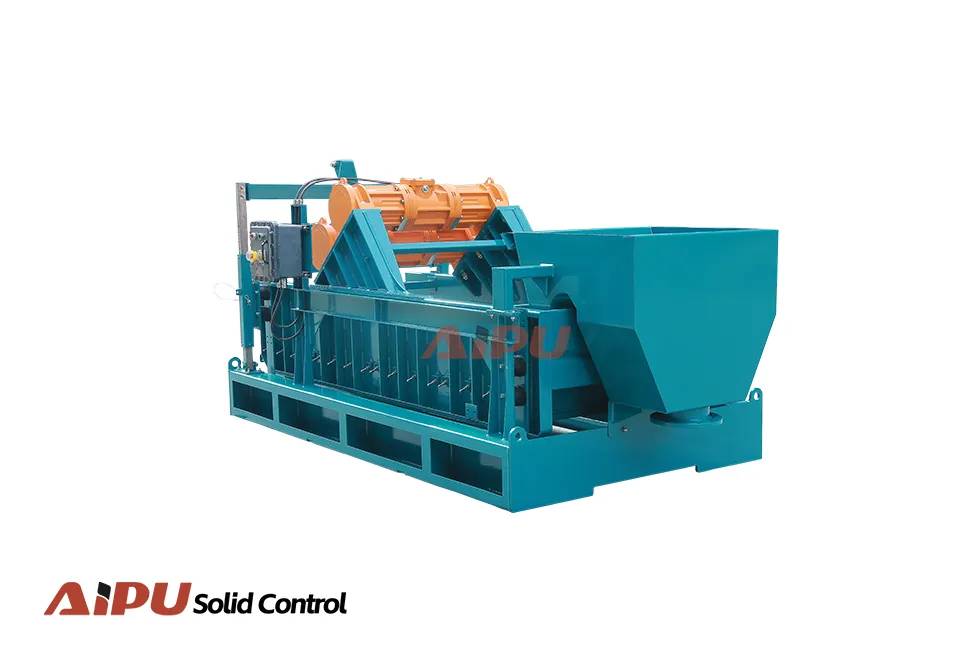

A dual motion shale shaker is a critical primary solids control device in modern drilling operations. It employs a combination of two vibration patterns to maximize solids removal and fluid recovery from drilling mud. This technology represents a significant advancement over traditional single-motion shakers, offering superior performance in challenging drilling environments, particularly with high solids loads and non-aqueous based muds (NABF).
Technical Working Principle
The core innovation lies in its ability to switch between or combine linear and elliptical motion. Linear motion provides aggressive, high-conveyance screening for high flow rates, moving cuttings toward the discharge end. Elliptical motion offers finer, more precise screening for peak solids removal efficiency. Modern units often feature adjustable vibration motors, allowing operators to tailor the motion (e.g., linear at the feed end, elliptical at the dry end) to the specific mud properties and drilled solids.
Key Components and Specifications
A robust dual motion shaker consists of a high-strength vibrator deck, multiple high-G-force vibration motors, and a fine-mesh screen panel system. Key specifications include:
- Screen Mesh Range: Typically 80 to 250+ mesh, allowing for fine cuttings separation.
- G-Force: Adjustable, often up to 7.5 G's, to optimize solids conveyance and fluid throughput.
- Deck Slope: Adjustable angle for controlling solids retention time.
- Power System: Robust electric or hydraulic motors designed for continuous duty in harsh environments.
Operational Benefits
The primary benefits directly impact drilling economics and efficiency. The dual motion mechanism significantly increases fluid recovery by preventing premature screen blinding, reducing mud losses. This leads to lower mud costs and decreased waste volume for disposal. Furthermore, by removing a higher percentage of fine solids at the primary stage, it reduces the load on downstream equipment like desanders and desilters, lowering overall maintenance costs and improving system reliability.
Industry Applications
This technology is indispensable in applications where drilling fluid is a major operational cost center. It is extensively used in:
- High-pressure, high-temperature (HPHT) wells using expensive synthetic-based mud (SBM).
- Extended-reach drilling (ERD) with high flow rates and solids loading.
- Geothermal and deepwater projects where efficient solids control is paramount for wellbore stability and equipment protection.
Maintenance Considerations
To sustain peak performance, regular maintenance is crucial. This includes daily inspection of screen integrity and tension, routine checking of vibration motor mounts and bearings, and ensuring the vibrator deck is free of dried solids buildup. Proper screen selection and rapid panel change-out procedures are vital to minimize non-productive time (NPT) and maintain optimal fluid processing rates.
Conclusion
The dual motion shale shaker is a cornerstone of efficient solids control, offering unmatched versatility and performance. By enabling precise control over vibration dynamics, it delivers substantial cost savings through superior fluid recovery and enhanced downstream equipment protection. As drilling fluids become more complex and environmental regulations tighten, the role of advanced shale shaker technology, particularly dual motion designs, will continue to be critical for safe, economical, and efficient drilling operations.
